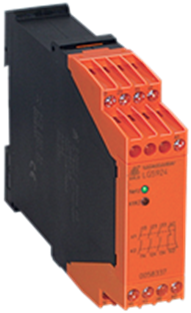

产品描述
• According to
- SIL-Claimed Level (SIL CL) 3 to EN 62061
- Performance Level (PL) e to DIN EN ISO 13849-1
- Category 4 to EN 954-1
• Single channel operation
• Output: max. 4 NO contacts
• AC 230 V model with galvanic separation
• LED indicator for channel 1 / 2 and state of operation
• Short circuit detection between terminal Y1 and common
• Wire connection: also 2 x 1.5 mm2 stranded ferruled, or
2 x 2.5 mm2 solid DIN 46 228-1/-2/-3/-4
• as option with plugable terminal blocks for easy exchange
of devices
- with screw terminals
- or with cage clamp terminals
• Width 22.5 mm
- SIL-Claimed Level (SIL CL) 3 to EN 62061
- Performance Level (PL) e to DIN EN ISO 13849-1
- Category 4 to EN 954-1
• Single channel operation
• Output: max. 4 NO contacts
• AC 230 V model with galvanic separation
• LED indicator for channel 1 / 2 and state of operation
• Short circuit detection between terminal Y1 and common
• Wire connection: also 2 x 1.5 mm2 stranded ferruled, or
2 x 2.5 mm2 solid DIN 46 228-1/-2/-3/-4
• as option with plugable terminal blocks for easy exchange
of devices
- with screw terminals
- or with cage clamp terminals
• Width 22.5 mm
Technical Data
Input
Nominal voltage UN: DC 24 V
AC 110, 230 V
Nominal frequency: 50 / 60 Hz
Voltage range: AC 0.85 ... 1.1 UN
at 10 % residual ripple: DC 0.9 ... 1.1 UN
at 48 % residual ripple: DC 0.85 ... 1.1 UN
Nominal consumption
DC 24 V: DC 1.5 W
AC 230 V: 3.5 VA
Control voltage on Y1
DC 24 V: typ. DC 22 V
AC 230 V: typ. DC 45 V
Control current
DC 24 V: typ. DC 65 mA
AC 230 V: typ. AC 16 mA
Recovery time: 0.5 s
Output
Contacts
LG 5924.02: 2 NO contacts
LG 5924.04: 4 NO contacts
LG 5924.48: 3 NO, 1 NC contacts
The NO contacts are safety contacts.
ATT ENTION! The NC contacts 41-42
can only be used for monitoring.
Operate delay
DC 24 V: typ. DC 40 ms
AC 230 V: typ. AC 200 ms
Release delay
AC/DC 24 V: typ. DC 70 ms
AC 230 V: typ. AC 35 ms
Contact type: positive guided
Thermal current Ith: max. 5 A (see quadratic
total current limit curve)
Nominal output voltage: AC 250 V
Switching capacity IEC/EN 60 947-5-1
to AC 15
NO contact: 3 A / AC 230 V
NC contact: 2 A / AC 230 V
to DC 13
NO contact: 4 A / 24 V
0.5 A / 110 V
NC contact 4 A / 24 V
Electrical life
at 5 A, AC 230 V cos ? = 1: > 1.5 x 105 switching cycles
according to DC 13
NO contacts
2 contacts in series: 8 A / 24 V > 25 x 103
On: 0.4 s, Off: 9.6 s
Permissible operating
frequency: 600 switching cycles / h
Short circuit strength
max. fuse rating: 10 A gL IEC/EN 60 947-5-1
line circuit breaker: B 6 A
Mechanical life: 10 x 106 switching cycles
General Data
Operating mode: Continuous operation
Temperature range: - 15 ... + 55 °C
Clearance and creepage
distances
rated impuls voltage /
pollution degree: 4 kV / 2 IEC 60 664-1
EMC
Electrostatic discharge: 8 kV (air) IEC/EN 61 000-4-2
HF irradiation: 10 V / m IEC/EN 61 000-4-3
Fast transients: 2 kV IEC/EN 61 000-4-4
Surge voltages
between wires for
power supply: 1 kV IEC/EN 61 000-4-5
between wire and ground: 2 kV IEC/EN 61 000-4-5
HF wire guided: 10 V IEC/EN 61 000-4-6
Interference suppression Limit value class B EN 55011
Degree of protection
Housing: IP 40 IEC/EN 60 529
Terminals: IP 20 IEC/EN 60 529
Housing: Thermoplastic with V0 behaviour
according to UL subject 94
Technical Data
Vibration resistance: Amplitude 0.35 mm
frequency 10 ... 55 Hz, IEC/EN 60 068-2-6
Climate resistance: 15 / 055 / 04 IEC/EN 60 068-1
Terminal designation: EN 50 005
Wire connection DIN 46 228-1/-2/-3/-4
Screw terminals
(integrated): 1 x 4 mm2 solid or
1 x 2.5 mm2 stranded ferruled or
2 x 1.5 mm2 stranded ferruled or
2 x 2.5 mm2 solid
Insulation of wires
or sleeve length: 8 mm
Plugin with screw terminals
max. cross section
for connection: 1 x 2.5 mm2 solid or
1 x 2.5 mm2 stranded ferruled
Insulation of wires
or sleeve length: 8 mm
Plugin with cage
clamp terminals
max. cross section
for connection: 1 x 4 mm2 solid or
1 x 2.5 mm2 stranded ferruled
min. cross section
for connection: 0.5 mm2
Insulation of wires
or sleeve length: 12 ±0.5 mm
Wire fixing: Plus-minus terminal screws M 3.5
box terminals with wire protection or
cage clamp terminals
Mounting: DIN rail IEC/EN 60 715
Weight
LG 5924, DC 24 V: 200 g
LG 5924, AC 230 V: 270 g
Dimensions
Width x height x depth
LG 5924: 22.5 x 90 x 121 mm
LG 5924 PC: 22.5 x 111 x 121 mm
LG 5924 PS: 22.5 x 104 x 121 mm
Standard type
LG 5924.48 DC 24 V
Article number: 0058335
• Output: 3 NO, 1 NC contacts
• Nominal voltage UN: DC 24 V
• Width: 22.5 mm
Input
Nominal voltage UN: DC 24 V
AC 110, 230 V
Nominal frequency: 50 / 60 Hz
Voltage range: AC 0.85 ... 1.1 UN
at 10 % residual ripple: DC 0.9 ... 1.1 UN
at 48 % residual ripple: DC 0.85 ... 1.1 UN
Nominal consumption
DC 24 V: DC 1.5 W
AC 230 V: 3.5 VA
Control voltage on Y1
DC 24 V: typ. DC 22 V
AC 230 V: typ. DC 45 V
Control current
DC 24 V: typ. DC 65 mA
AC 230 V: typ. AC 16 mA
Recovery time: 0.5 s
Output
Contacts
LG 5924.02: 2 NO contacts
LG 5924.04: 4 NO contacts
LG 5924.48: 3 NO, 1 NC contacts
The NO contacts are safety contacts.
ATT ENTION! The NC contacts 41-42
can only be used for monitoring.
Operate delay
DC 24 V: typ. DC 40 ms
AC 230 V: typ. AC 200 ms
Release delay
AC/DC 24 V: typ. DC 70 ms
AC 230 V: typ. AC 35 ms
Contact type: positive guided
Thermal current Ith: max. 5 A (see quadratic
total current limit curve)
Nominal output voltage: AC 250 V
Switching capacity IEC/EN 60 947-5-1
to AC 15
NO contact: 3 A / AC 230 V
NC contact: 2 A / AC 230 V
to DC 13
NO contact: 4 A / 24 V
0.5 A / 110 V
NC contact 4 A / 24 V
Electrical life
at 5 A, AC 230 V cos ? = 1: > 1.5 x 105 switching cycles
according to DC 13
NO contacts
2 contacts in series: 8 A / 24 V > 25 x 103
On: 0.4 s, Off: 9.6 s
Permissible operating
frequency: 600 switching cycles / h
Short circuit strength
max. fuse rating: 10 A gL IEC/EN 60 947-5-1
line circuit breaker: B 6 A
Mechanical life: 10 x 106 switching cycles
General Data
Operating mode: Continuous operation
Temperature range: - 15 ... + 55 °C
Clearance and creepage
distances
rated impuls voltage /
pollution degree: 4 kV / 2 IEC 60 664-1
EMC
Electrostatic discharge: 8 kV (air) IEC/EN 61 000-4-2
HF irradiation: 10 V / m IEC/EN 61 000-4-3
Fast transients: 2 kV IEC/EN 61 000-4-4
Surge voltages
between wires for
power supply: 1 kV IEC/EN 61 000-4-5
between wire and ground: 2 kV IEC/EN 61 000-4-5
HF wire guided: 10 V IEC/EN 61 000-4-6
Interference suppression Limit value class B EN 55011
Degree of protection
Housing: IP 40 IEC/EN 60 529
Terminals: IP 20 IEC/EN 60 529
Housing: Thermoplastic with V0 behaviour
according to UL subject 94
Technical Data
Vibration resistance: Amplitude 0.35 mm
frequency 10 ... 55 Hz, IEC/EN 60 068-2-6
Climate resistance: 15 / 055 / 04 IEC/EN 60 068-1
Terminal designation: EN 50 005
Wire connection DIN 46 228-1/-2/-3/-4
Screw terminals
(integrated): 1 x 4 mm2 solid or
1 x 2.5 mm2 stranded ferruled or
2 x 1.5 mm2 stranded ferruled or
2 x 2.5 mm2 solid
Insulation of wires
or sleeve length: 8 mm
Plugin with screw terminals
max. cross section
for connection: 1 x 2.5 mm2 solid or
1 x 2.5 mm2 stranded ferruled
Insulation of wires
or sleeve length: 8 mm
Plugin with cage
clamp terminals
max. cross section
for connection: 1 x 4 mm2 solid or
1 x 2.5 mm2 stranded ferruled
min. cross section
for connection: 0.5 mm2
Insulation of wires
or sleeve length: 12 ±0.5 mm
Wire fixing: Plus-minus terminal screws M 3.5
box terminals with wire protection or
cage clamp terminals
Mounting: DIN rail IEC/EN 60 715
Weight
LG 5924, DC 24 V: 200 g
LG 5924, AC 230 V: 270 g
Dimensions
Width x height x depth
LG 5924: 22.5 x 90 x 121 mm
LG 5924 PC: 22.5 x 111 x 121 mm
LG 5924 PS: 22.5 x 104 x 121 mm
Standard type
LG 5924.48 DC 24 V
Article number: 0058335
• Output: 3 NO, 1 NC contacts
• Nominal voltage UN: DC 24 V
• Width: 22.5 mm
