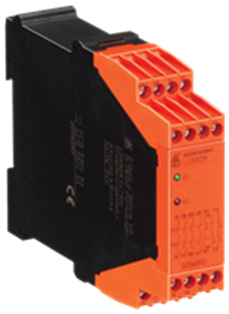

产品描述
• According to
- SIL Claimed Level (SIL CL) 3 to EN 62061
- Performance Level (PL) e to DIN EN ISO 13849-1
- Category 4 to EN 954-1
• Control from semiconductor safety outputs (light curtains,
e-stop, etc.) is also possible
• Redundant and positively-driven contacts
• Output: max. 5 NO contacts or 4 NO contacts / 1 NC contact
• 1-channel or 2-channel connection
• LED indication for operation
• Removeable terminal strips
• Wire connection: also 2 x 1.5 mm2 stranded ferruled, or
2 x 2.5 mm2 solid DIN 46 228-1/-2/-3/-4
• As option with plugable terminal blocks for easy exchange
of devices
- with screw terminals
- or with cage clamp terminals
• Width 22.5 mm
- SIL Claimed Level (SIL CL) 3 to EN 62061
- Performance Level (PL) e to DIN EN ISO 13849-1
- Category 4 to EN 954-1
• Control from semiconductor safety outputs (light curtains,
e-stop, etc.) is also possible
• Redundant and positively-driven contacts
• Output: max. 5 NO contacts or 4 NO contacts / 1 NC contact
• 1-channel or 2-channel connection
• LED indication for operation
• Removeable terminal strips
• Wire connection: also 2 x 1.5 mm2 stranded ferruled, or
2 x 2.5 mm2 solid DIN 46 228-1/-2/-3/-4
• As option with plugable terminal blocks for easy exchange
of devices
- with screw terminals
- or with cage clamp terminals
• Width 22.5 mm
Technical Data
Input
Nominal voltage UN: AC / DC 24 V, AC / DC 110 / 115 V,
AC 110 / 115 V, AC 230 / 240 V
Voltage range: AC 0.85 ... 1.1 UN
at 10% residual ripple: DC 0.9 ... 1.1 UN
at 48% residual ripple: DC 0.85 ... 1.1 UN
Nominal consumption at UN
AC / DC 24 V: 1.8 VA
AC / DC 110/115 V: 2.0 VA
AC 110/115 V, 230/240 V: 3.0 VA
Nominal frequency: 50 / 60 Hz
Control current:
at 24 V over 2 relays: 75 mA
Output
Contacts
LG 5929.60,LG 5929.60/100: 5 NO contacts,
1 NC contact for feed back circuit
LG 5929.54,LG5929.54/100: 4 NO contacts, 1 NC contact
1 NC contact for feed back circuit
Operate time: max. 20 ms
Release time: max. 35 ms
Contact type: relay, positively-driven
Nominal output voltage: AC 250 V
Thermal current Ith: see total current limit curve
max. 5 A
Switching capacity
to AC 15:
NO contact: 3 A / AC 230 V IEC/EN 60 947-5-1
NC contact: 2 A / AC 230 V IEC/EN 60 947-5-1
to DC 13:
NO contact: 4 A / 24 V IEC/EN 60 947-5-1
NC contact: 4 A / 24 V IEC/EN 60 947-5-1
to DC 13
NO contact: 8 A / 24 V > 25 x 103
ON: 0.4 s, OFF: 9.6 s
Electrical life
to AC 15 at 2 A, AC 230 V: 105 switching cycles IEC/EN 60 947-5-1
Permissible switching
capacity: 1200 switching cycles / h
Technical Data
Short circuit strength
max. fuse rating: 10 A gL IEC/EN 60 947-5-1
max. line circuit breaker: B 6 A
Mechanical life: 20 x 106 switching cycles
General Data
Operating mode: Continuous operation
Temperature range: - 15 ... + 55 °C
Clearance and creepage
distances
rated impuls voltage /
pollution degree: 4 kV / 2 IEC 60 664-1
EMC
Electrostatic discharge: 8 kV (air) IEC/EN 61 000-4-2
HF-irradiation: 10 V / m IEC/EN 61 000-4-3
HF-wire guided: 10 V IEC/EN 61 000-4-6
Fast transients: 4 kV IEC/EN 61 000-4-4
Surge voltages
between
wires for power supply: 1 kV IEC/EN 61 000-4-5
0.5 kV IEC/EN 61 000-4-5
at AC/DC 24 V
between wire and ground: 4 kV IEC/EN 61 000-4-5
Interference suppression: Limit value class B EN 55 011
Degree of protection
Housing: IP 40 IEC/EN 60 529
Terminals: IP 20 IEC/EN 60 529
Housing: Thermoplast with V0 behaviour
according to UL subject 94
Vibration resistance: Amplitude 0.35 mm IEC/EN 60 068-2-6
frequency 10 ... 55 Hz
Climate resistance: 15 / 055 / 04 IEC/EN 60 068-1
Terminal designation: EN 50 005
Wire connection DIN 46 228-1/-2/-3/-4
Screw terminals
(integrated): 1 x 4 mm2 solid or
1 x 2.5 mm2 stranded ferruled (isolated)
or
2 x 1.5 mm2 stranded ferruled (isolated)
or 2 x 2.5 mm2 solid
Insulation of wires
or sleeve length: 8 mm
Plugin with screw terminals
max. cross section
for connection: 1 x 2.5 mm2 solid or
1 x 2.5 mm2 stranded ferruled
Insulation of wires
or sleeve length: 8 mm
Plugin with cage
clamp terminals
max. cross section
for connection: 1 x 4 mm2 solid or
1 x 2.5 mm2 stranded ferruled
min. cross section
for connection: 0.5 mm2
Insulation of wires
or sleeve length: 12 ±0.5 mm
Wire fixing: Plus-minus terminal screws M 3.5
box terminals with wire protection or
cage clamp terminals
Mounting: DIN rail IEC/EN 60 715
Weight: 205 g
Dimensions
Width x heigth x depth
LG 5929: 22.5 x 90 x 121 mm
LG 5929 PC: 22.5 x 111 x 121 mm
LG 5929 PS: 22.5 x 104 x 121 mm
Standard type
LG 5929.60 AC/DC 24 V 50/60 Hz
Article number: 0056090
• Output:5 NO contacts, 1 NC contact for feed back circuit
• Nominal voltage UN: AC/DC 24 V
• Width: 22.5 mm
