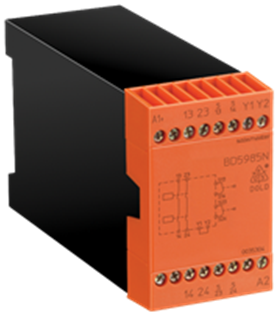

产品描述
• According to EN 62 061, DIN EN ISO 13 849-1
• Category 4 according to EN 954-1
• Inputs for 2 position switches
• Output: 2 NO contacts for AC 250 V
• Gold-plated contacts to switch small loads (input for PLC)
• Monitoring of exernal contactors for contact multiplication /
reinforcement via feedback circuit
• Overvoltage and short circuit protection
• Wire connection: also 2 x 1,5 mm2 stranded ferruled (isolated),
DIN 46 228-1/-2/-3/-4 or
2 x 2.5 mm2 stranded ferruled DIN 46 228-1/-2/-3
• Width 45 mm
• Category 4 according to EN 954-1
• Inputs for 2 position switches
• Output: 2 NO contacts for AC 250 V
• Gold-plated contacts to switch small loads (input for PLC)
• Monitoring of exernal contactors for contact multiplication /
reinforcement via feedback circuit
• Overvoltage and short circuit protection
• Wire connection: also 2 x 1,5 mm2 stranded ferruled (isolated),
DIN 46 228-1/-2/-3/-4 or
2 x 2.5 mm2 stranded ferruled DIN 46 228-1/-2/-3
• Width 45 mm
Technical Data
Input
Nominal voltage UN: DC 24 V, AC 24, 42, 110, 230, 240 V
Voltage range: AC 0.8 ... 1.1 UN
at 10 % residual ripple: DC 0.9 ... 1.2 UN
at 48 % residual ripple DC 0.8 ... 1.1 UN
Nominal consumption: AC 24 ... 230 V 4.0 VA
DC 24 V 2.5 W
Nominal frequency: 50 / 60 Hz
Delay time for simultaneity
demand: max. 3 s
Recovery time: 1 s
Control contacts: 2 x 1 NO contacts
Control contact load: DC 30 V / 10 mA
Device fuse protection: internal with PTC
Output
Contacts
BD 5985N.02: 2 NO contacts
Operate / release time: typ. 30 ms / typ. 30 ms
Contact type: Relay, positively-driven
Nominal output voltage: AC 250 V
DC: see limit curve for arc-free
operation
Thermal current Ith: see continuous curent limit curve
(max. 10 A in one contact path)
Switching capacity
to AC 15: 5 A / AC 230 V IEC/EN 60 947-5-1
Electrical life
to AC 15 at 2 A, AC 230 V: 105 switching cycles IEC/EN 60 947-5-1
Technical Data
Permissible operating
frequency: max. 360 switching cycles / h
Short circuit strength
max. fuse rating: 6 A gL IEC/EN 60 947-5-1
max. line circuit breaker: C 10 A
Mechanical life: 10 x 106 switching cycles
General Data
Operating mode: Continuous operation
Temperature range: - 15 ... + 55°C
Clearance and creepage
distances
rated impuls voltage /
pollution degree: 4 kV / 2 IEC 60 664-1
EMC
Electroststic discharge: 8 kV (air) IEC/EN 61 000-4-2
HF irradiation: 10 V / m IEC/EN 61 000-4-3
Fast transients: 2 kV IEC/EN 61 000-4-4
Surge voltages
between
wires for power supply: 1 kV IEC/EN 61 000-4-5
between wire and ground: 2 kV IEC/EN 61 000-4-5
HF-irradiation: 10 V IEC/EN 61 000-4-6
Interference suppression: Limit value class B EN 55 011
Degree of protection
Housing: IP 40 IEC/EN 60 529
Terminal plate: IP 20 IEC/EN 60 529
Housing: Thermoplastic with V0 behaviour
according to UL subject 94
Vibration resistance: Amplitude 0.35 mm, IEC/EN 60 068-2-6
frequency 10 ... 55 Hz
Climate resistance: 15 / 055 / 04 IEC/EN 60 068-1
Terminal designation: EN 50 005
Wire connection: 1 x 4 mm2 solid or
1 x 2.5 mm2 stranded ferruled (isolated)
or
2 x 1.5 mm2 stranded ferruled (isolated)
DIN 46 228-1/-2/-3/-4 or
2 x 2.5 mm2 stranded ferruled
DIN 46 228-1/-2/-3
Wire fixing: Plus-minus terminal screws M3.5,
box terminal with wire protection
Mounting: DIN rail IEC/EN 60 715
Weight: 450 g
Dimensions
Width x heigth x depth: 45 x 74 x 121 mm
Standard type
BD 5985N.02 DC 24 V
Article number: 0035304 stock item
• Output: 2 NO contacts
• Nominal voltage UN: DC 24 V
• Width: 45 mm
Input
Nominal voltage UN: DC 24 V, AC 24, 42, 110, 230, 240 V
Voltage range: AC 0.8 ... 1.1 UN
at 10 % residual ripple: DC 0.9 ... 1.2 UN
at 48 % residual ripple DC 0.8 ... 1.1 UN
Nominal consumption: AC 24 ... 230 V 4.0 VA
DC 24 V 2.5 W
Nominal frequency: 50 / 60 Hz
Delay time for simultaneity
demand: max. 3 s
Recovery time: 1 s
Control contacts: 2 x 1 NO contacts
Control contact load: DC 30 V / 10 mA
Device fuse protection: internal with PTC
Output
Contacts
BD 5985N.02: 2 NO contacts
Operate / release time: typ. 30 ms / typ. 30 ms
Contact type: Relay, positively-driven
Nominal output voltage: AC 250 V
DC: see limit curve for arc-free
operation
Thermal current Ith: see continuous curent limit curve
(max. 10 A in one contact path)
Switching capacity
to AC 15: 5 A / AC 230 V IEC/EN 60 947-5-1
Electrical life
to AC 15 at 2 A, AC 230 V: 105 switching cycles IEC/EN 60 947-5-1
Technical Data
Permissible operating
frequency: max. 360 switching cycles / h
Short circuit strength
max. fuse rating: 6 A gL IEC/EN 60 947-5-1
max. line circuit breaker: C 10 A
Mechanical life: 10 x 106 switching cycles
General Data
Operating mode: Continuous operation
Temperature range: - 15 ... + 55°C
Clearance and creepage
distances
rated impuls voltage /
pollution degree: 4 kV / 2 IEC 60 664-1
EMC
Electroststic discharge: 8 kV (air) IEC/EN 61 000-4-2
HF irradiation: 10 V / m IEC/EN 61 000-4-3
Fast transients: 2 kV IEC/EN 61 000-4-4
Surge voltages
between
wires for power supply: 1 kV IEC/EN 61 000-4-5
between wire and ground: 2 kV IEC/EN 61 000-4-5
HF-irradiation: 10 V IEC/EN 61 000-4-6
Interference suppression: Limit value class B EN 55 011
Degree of protection
Housing: IP 40 IEC/EN 60 529
Terminal plate: IP 20 IEC/EN 60 529
Housing: Thermoplastic with V0 behaviour
according to UL subject 94
Vibration resistance: Amplitude 0.35 mm, IEC/EN 60 068-2-6
frequency 10 ... 55 Hz
Climate resistance: 15 / 055 / 04 IEC/EN 60 068-1
Terminal designation: EN 50 005
Wire connection: 1 x 4 mm2 solid or
1 x 2.5 mm2 stranded ferruled (isolated)
or
2 x 1.5 mm2 stranded ferruled (isolated)
DIN 46 228-1/-2/-3/-4 or
2 x 2.5 mm2 stranded ferruled
DIN 46 228-1/-2/-3
Wire fixing: Plus-minus terminal screws M3.5,
box terminal with wire protection
Mounting: DIN rail IEC/EN 60 715
Weight: 450 g
Dimensions
Width x heigth x depth: 45 x 74 x 121 mm
Standard type
BD 5985N.02 DC 24 V
Article number: 0035304 stock item
• Output: 2 NO contacts
• Nominal voltage UN: DC 24 V
• Width: 45 mm
