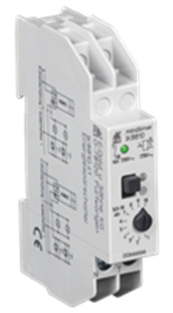

产品名称：IK8810/005 风扇控制时间 导轨式安全继电器
型号：IK8810/005
产品特点：IK8810 005 风扇控制时间 导轨式安全继电器
在线咨询： QQ客服（1163509400）
产品描述
• According to EN 60669
• Setting range 0,5 ... 10 min
• After the light the fan switched on
• Switch for continuous light of the exhauster on unit
• Contact: 16 A
• Width 17,5 mm
• Setting range 0,5 ... 10 min
• After the light the fan switched on
• Switch for continuous light of the exhauster on unit
• Contact: 16 A
• Width 17,5 mm
Technical Data
Time circuit
Time range: 0,5 ... 10 min
Repeat accuracy: < 1 % of setting value
Input
Nominal voltage UN: AC 230 V
Voltage range: 0,8 ... 1,1 UN
Nominal consumption
apparent power: 4 VA
effective power: 1 W
Nominal frequency: 50 / 60 Hz
Permitted residual current
caused by glow lamps
in the push buttons max. 10 glow lamps à 1 mA
Output
Contacts: 1 NO contact, delay
Contact opening gap: < 3 mm
Thermal current Ith: 16 A
Switching capacity
at fan load
Short circuit strength
max. fuse rating: 16 AgL IEC/EN 60 947-5-1
Mechanical life: > 106 switching cycles
Technische Daten
General Data
Nominal operating mode: impulse operation
Temperature range: - 20 ... + 60°C
Clearance and creepage
distances
overvoltage category /
contamination level: 4 kV / 2 IEC 60 664-1
EMC
Electrostatic discharge (ESD):8 kV (air) IEC/EN 61 000-4-2
HF-irradiation: 10 V / m IEC/EN 61 000-4-3
Fast transients: 2 kV IEC/EN 61 000-4-4
Surge voltages
between
wires for power supply: 2 kV IEC/EN 61 000-4-5
between wire and ground: 4 kV IEC/EN 61 000-4-5
Interference suppression: Limit value class B EN 55 011
Degree of protection:
Housing: IP 40 IEC/EN 60 529
Terminals: IP 20 IEC/EN 60 529
Enclosure: Thermoplast with V0-behaviour
according to UL subj. 94
Vibration resistance Amplitude 0,35 mm
frequenzy 10 ... 55 Hz IEC/EN 60 068-2-6
Climate resistance: 20 / 045 / 04 IEC/EN 60 068-1
Terminal designation: EN 50 005
Wire connection: 2 x 2,5 mm2 solid or
2 x 1,5 mm2 stranded wire with sleeve
DIN 46 228-1/-2/-3/-4
Wire fixing: Flat terminals with self-lifting
clamping piece IEC/EN 60 999-1
Mounting: DIN rail IEC/EN 60 715
Weight: 75 g
Dimensions
Width x Height x Depth: 17,5 x 89 x 58 mm
Standard type
IK 8810.41/005 AC 230 V 50 / 60 Hz 0,5 ... 10 min
Article number: 0057068 stock item
• Output: 1 NO contact, delay
• Nominal voltage UN: AC 230 V
• Timer range: 0,5 ... 10 min
• Width: 17,5 mm
Time circuit
Time range: 0,5 ... 10 min
Repeat accuracy: < 1 % of setting value
Input
Nominal voltage UN: AC 230 V
Voltage range: 0,8 ... 1,1 UN
Nominal consumption
apparent power: 4 VA
effective power: 1 W
Nominal frequency: 50 / 60 Hz
Permitted residual current
caused by glow lamps
in the push buttons max. 10 glow lamps à 1 mA
Output
Contacts: 1 NO contact, delay
Contact opening gap: < 3 mm
Thermal current Ith: 16 A
Switching capacity
at fan load
Short circuit strength
max. fuse rating: 16 AgL IEC/EN 60 947-5-1
Mechanical life: > 106 switching cycles
Technische Daten
General Data
Nominal operating mode: impulse operation
Temperature range: - 20 ... + 60°C
Clearance and creepage
distances
overvoltage category /
contamination level: 4 kV / 2 IEC 60 664-1
EMC
Electrostatic discharge (ESD):8 kV (air) IEC/EN 61 000-4-2
HF-irradiation: 10 V / m IEC/EN 61 000-4-3
Fast transients: 2 kV IEC/EN 61 000-4-4
Surge voltages
between
wires for power supply: 2 kV IEC/EN 61 000-4-5
between wire and ground: 4 kV IEC/EN 61 000-4-5
Interference suppression: Limit value class B EN 55 011
Degree of protection:
Housing: IP 40 IEC/EN 60 529
Terminals: IP 20 IEC/EN 60 529
Enclosure: Thermoplast with V0-behaviour
according to UL subj. 94
Vibration resistance Amplitude 0,35 mm
frequenzy 10 ... 55 Hz IEC/EN 60 068-2-6
Climate resistance: 20 / 045 / 04 IEC/EN 60 068-1
Terminal designation: EN 50 005
Wire connection: 2 x 2,5 mm2 solid or
2 x 1,5 mm2 stranded wire with sleeve
DIN 46 228-1/-2/-3/-4
Wire fixing: Flat terminals with self-lifting
clamping piece IEC/EN 60 999-1
Mounting: DIN rail IEC/EN 60 715
Weight: 75 g
Dimensions
Width x Height x Depth: 17,5 x 89 x 58 mm
Standard type
IK 8810.41/005 AC 230 V 50 / 60 Hz 0,5 ... 10 min
Article number: 0057068 stock item
• Output: 1 NO contact, delay
• Nominal voltage UN: AC 230 V
• Timer range: 0,5 ... 10 min
• Width: 17,5 mm
